BGA-936UA
Convenient, Accurate, High Efficiency
First Different Color Alignment System

- The sole design for adjustable hot air forcible guide
- Ultra large bottom heating (360x260 mm)
- High efficiency cooling system
- Reflow profile inspection system




  • Overview
  •
  • Specification
  • Nozzle
BGA Rework Station
BGA-936UA

EfficientReliableUser-Friendly


High Efficiency is the ultimate goal in our constant pursue of perfection. Possessing fine heating element with 1000W upper hot air injection and ultra large IR bottom heating system, 936UA offers excellent efficiency in soldering and desoldering performance. Versatile clamper is specially designed for various P.C.B. from mobile phone to server field.


Reliability
of 936UA guarantees the quality and stable yield rate.  The use of New Fuzzy Industrial Microprocessor and Aviation Industrial Precision Linear Mechanism brings more accurate and reliable result.  Precise and clear Different Color Alignment System makes alignment trustworthy.


User-Friendly
design with integrated operation interface brings working pleasure to operators.  No need for extra equipment or air-supply, AC power itself is sufficient.  Within 2 hours of training, operator could understand and operate our intuitive operation controller with ease for it is that user friendly.

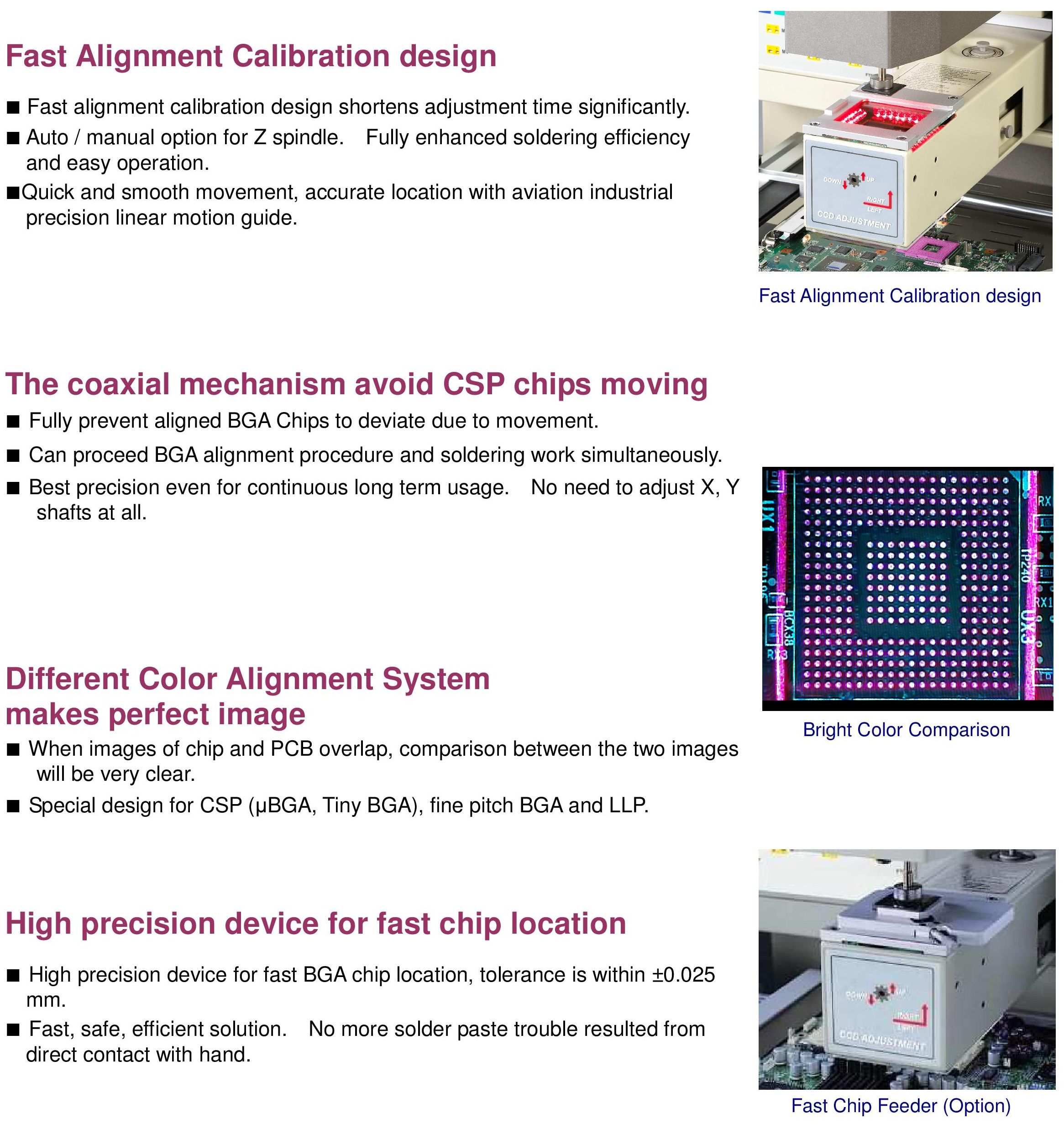

Fast Alignment Calibration



Ultra Large Bottom Heating Design




New Fuzzy Industrial Microprocessor





 Automatic Mechanism and Durable Structure





Specification

Main Voltage

220 ±10V AC

Power Consumption

Max. 6100W

Preset Temp. of Top

50 ºC ~ 399 ºC (122ºF ~ 750) ºF)

Preset Temp. of Bottom

50 ºC ~ 399 ºC (122ºF ~ 750 ºF)

Top Heater

1000W

Bottom Heater

1000/3000/5000W(Adjustable)

Air Spouting

250 l/min Max. (Adjustable)

Vacuum Pump

420mm Hg Max.

Working Lamp

5 W 12V

P.C Board Size Capacity

600mm x 460 mm  Option:(600mmx680mm)

Applicable Devices

Max. 80mm x 80mm

Vision Magnification

Standard up to 20x. Option 40x, 60x

Dimensions

62(W) x 62(H) x 70(D)cm

Weight

98kg

Accessories

High-Resolution TFT 17” LCD packages

1 set

Monitor mount Plate

1 set

Hex key wrench

1 set

Vacuum Pads (Ø5 Ø10 Ø15)

1 pcs

Center Support

1 set

Optional Accessories

1.      Complete range of standard and custom nozzles.
2.      Gloves with high temperature resistance.
3.      Various sizes of vacuum pads. (Ø2, Ø5, Ø10, Ø15)
4.      Clamper for special P.C. Board.
5.      Electronic Dry Cabinet
6.      Fast Chip Feeder
7.      Table

NOZZLE

 選項  圖示  料號  品名  規格
     93622200  上加熱器  1000W
      93622200  上加熱器2  1000W
